We provide customers with fully automatic popping boba production line,fully automatic agar crystal ball production line,automatic konjac ball production line

1.Fully Automatic Popping Boba Production Line

2.Agar crystal ball production line

3.Automatic Konjac Ball Production Line

4.Popping Boba and Agar Boba Production Line

5.Popping Boba,agar crystal ball,Konjac Ball types (candy shapes) and applications

6.Popping Boba,agar crystal ball,Konjac Ball making Machine Working Principle

7.Installation of the Popping Boba,agar crystal ball,Konjac Ball making machines

8.Popping Boba,agar crystal ball,Konjac Ball production line for sales and price

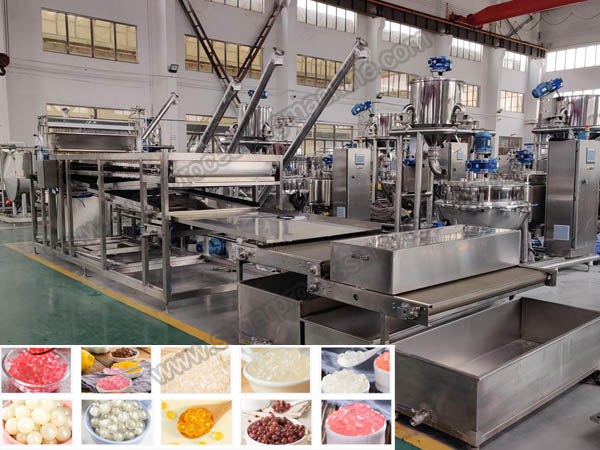

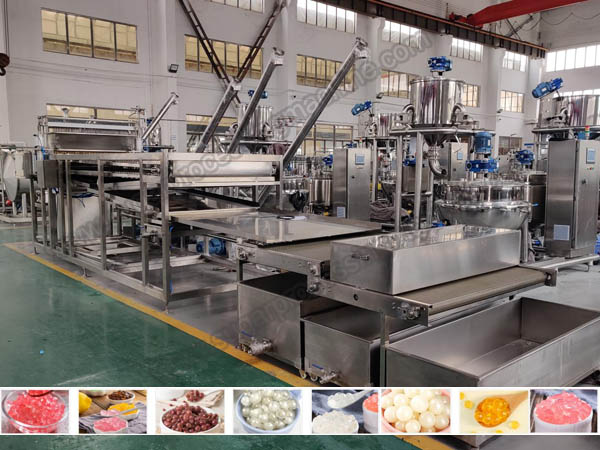

1.Fully Automatic Popping Boba Production Line

Fully Automatic Popping Boba Production Line

Fully automatic popping boba production line, independently developed ,high quality and high output. The latest technology PLC program and touch screen are easy to operate and precisely control the size of the boba. Full line of SUS304 stainless steel, support customization, workshop planning and engineer to factory installation.

 Product parameters:

Model:ZY50,Capacity(kg/h):20-50 ,Gross weight:2000kg

Model:ZY100,Capacity(kg/h):50-100 ,Gross weight:2200kg

Model:ZY200,Capacity(kg/h):200-300 ,Gross weight:3000kg

Model:ZY500,Capacity(kg/h):400-600 ,Gross weight:3800kg

Product features and application:

Fully automatic popping boba production line ,The whole set of machines include the jam hopper, SUS pans, flushing system and cleaning system and etc.. The entire production line is mainly made of stainless steel, which fully conforms to food hygiene standards.Widely used in milk tea, catering, caviar and other industries.

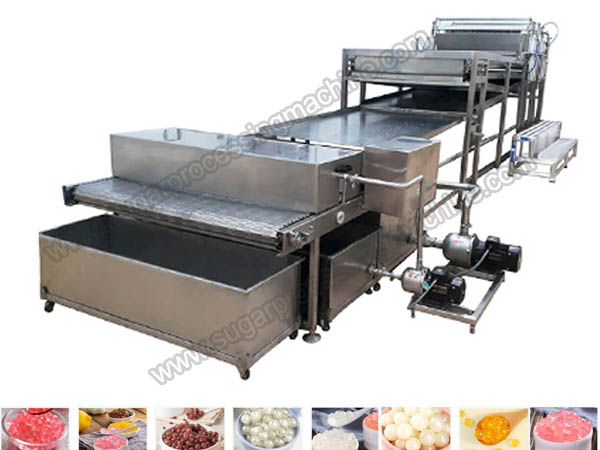

2.Agar crystal ball production line

crystal agar ball production line

MODEL:P50

Capacity:20-50kg/h

Boba weight:According to boba diameter (Customized from 3~30mm or more)

Depositing Speed:15~25 Strike/min,

Motor Power:0.37kW/380V/50HZ

Compressed Air:0.5M3/min, 0.4~0.6MPa

Machine size:2400X800X1550MM

Gross weight:200kg

MODEL:P100

Capacity:50-100kg/h

Boba weight:According to boba diameter (Customized from 3~30mm or more)

Depositing Speed:15~25 Strike/min,

Motor Power:0.45kW/380V/50HZ

Compressed Air:1.2M3/min, 0.4~0.6MPa

Machine size:8500X1300X1780MM

Gross weight:2200kg

MODEL:P200

Capacity:200-300kg/h

Boba weight:According to boba diameter (Customized from 3~30mm or more)

Depositing Speed:15~25 Strike/min,

Motor Power:6.5kW/380V/50HZ

Compressed Air:1.5M3/min, 0.4~0.6MPa

Machine size:9250X1700X1780MM

Gross weight:3000kg

MODEL:P500

Capacity:400-500kg/h

Boba weight:According to boba diameter (Customized from 3~30mm or more)

Depositing Speed:15~25 Strike/min,

Motor Power:8kW/380V/50HZ

Compressed Air:2M3/min, 0.4~0.6MPa

Machine size:11500X1700X1780MM

Gross weight:3800kg

Colloid mill/

Colloid mill is an equipment for fine grinding of fluid and semi-fluid materials. Can be processed according to the requirements of the material, through the fixed teeth and rotating teeth high-speed operation, so that the material under the strong shear force. This machine has superfine grinding, dispersing, emulsifying, homogenizing, mixing and other efficiency. It is widely used in Food industry, chemical industry, pharmaceutical industry, daily chemical industry, construction industry, paper industry, battery industry, etc.

SPECIFICATIONS

The whole production line is main made of stainless steel and it is fully complying with the food sanitation standards. The popping boba and agar boba that made by this machine is in beautiful shape and filling can be any taste, bright color and weight is without variation.

The popping boba and agar boba can be used in bubble tea, juice, ice cream, cake decoration and egg tart filling, frozen yogurt, and etc. It is new developed and healthy products, which can be used in many food products items.

Other character of the production line

1.PLC/SERVO process control available;

2.An Touch screen (HMI) is installed for easy operating;

3.The standard production capacity range is from 20 to 500kgs/h;

4.The main parts is made of hygienic Stainless Steel SUS304,

also can be customized to SUS316.

5.Continuous working and materials recycling design to avoid wastage.

6.Individual and Entirety adjust for different size boba making.

7.Can be customized to multifunctional line for both popping boba and agar boba.

8.Boba Shell thickness is easy to be adjusted and controlled.

9.User friendly interface and automatic processing available.

3.Automatic Konjac Ball Production Line

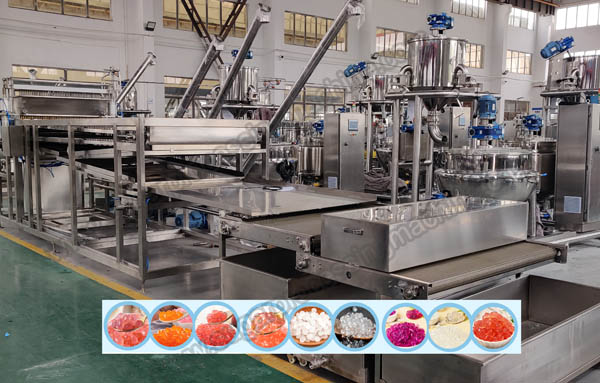

Automatic Konjac Ball Production Line

 MODEL:ZY200,Capacity:150-200kg/h,Konjac Ball weigh:According to ball diameter (Customized from 5~15mm or more) ， Power Supply:5.5kW,Compressed Air:0.5M3/min, 0.4~0.6MPa, Machine size:4500X1200X1850MM,Gross weight:1200kg

 MODEL:ZY400,Capacity:300-400kg/h,Konjac Ball weigh:According to ball diameter (Customized from 5~15mm or more) ， Power Supply:7kW,Compressed Air:1.2M3/min, 0.4~0.6MPa, Machine size:4500X1200X1850MM,Gross weight:1600kg

 MODEL:ZY800,Capacity:600-800kg/h,Konjac Ball weigh:According to ball diameter (Customized from 5~15mm or more) ， Power Supply:8.5kW,Compressed Air:1.5M3/min, 0.4~0.6MPa, Machine size:5500X1200X1850MM,Gross weight:2500kg

 MODEL:ZY1200,Capacity:900-1200kg/h,Konjac Ball weigh:According to ball diameter (Customized from 5~15mm or more) ， Power Supply:10kW,Compressed Air:2M3/min, 0.4~0.6MPa, Machine size:6500X1200X1850MM,Gross weight:2600kg

The whole production line is main made of stainless steel and it is fully complying with the food sanitation standards. The Konjac / agar boba that made by this machine is in beautiful round shape and can be any taste, bright color and weight is without variation.

The Konjac ball / agar boba can be used in bubble tea, juice, ice cream, cake decoration and egg tart filling, frozen yogurt, and etc. It is new developed and healthy products, which can be used in many food products items.

 Other character of the production line

1) PLC/SERVO process control available;

2) An Touch screen (HMI) is installed for easy operating;

3) The standard production capacity range is from 150 to 1000kgs/h;

4) The main parts is made of hygienic Stainless Steel SUS304, also can be customized to SUS316.

5) Different forming plate for different size konjac ball / agar boba making.

6) User friendly interface and automatic processing available.

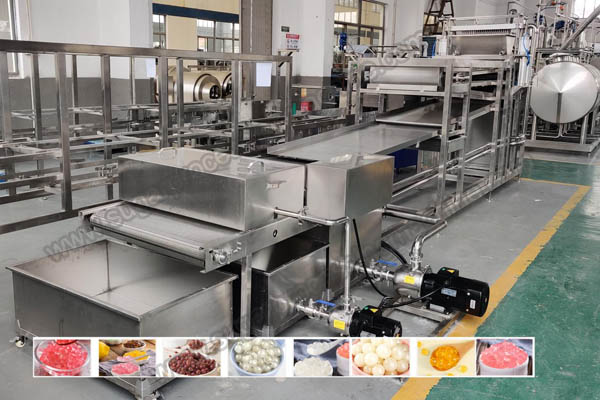

4.Popping Boba and Agar Boba Production Line

Popping Boba and Agar Boba Production Line

MODEL:P50

Capacity:20-50kg/h

Motor Power:0.37kW/380V/50HZ

Machine size:2400X800X1550MM

Gross weight:200kg

MODEL:P100

Capacity:50-100kg/h

Motor Power:0.45kW/380V/50HZ

Machine size:8500X1300X1780MM

Gross weight:2200kg

MODEL:P200

Capacity:200-300kg/h

Motor Power:6.5kW/380V/50HZ

Machine size:9250X1700X1780MM

Gross weight:3000kg

MODEL:P500

Capacity:400-500kg/h

Motor Power:8kW/380V/50HZ

Machine size:11500X1700X1780MM

Gross weight:3800kg

Due to its deliciousness and fun to enjoy,Agar Boba and popping boba is rapidly gaining popularity all over the world. The production of popping boba and Agar Boba in the local area saves costs and time so has become the choice of many food manufacturers. you can find the right equipment to produce popping boba and Agar Boba. Our popping boba and Agar Boba production line is a fully automatic machine that features simple operation, and integrates all the processes of popping boba and Agar Boba making. The poping boba and Agar Boba produced by this machine has round shape and bright color, suitable for cold and hot drinks such as bubble tea, ice cream, yogurt, etc., or for cake decoration and fruit salad.

According to the production process, the popping boba and Agar Boba is produced by three kinds of liquids, i.e. the fruit juice inside the popping boba and Agar Boba, the sodium alginate-based coagulation liquid at the surface of popping boba and Agar Boba, and the protective liquid for preservation of the popping boba and Agar Boba.

 Other character of the Popping Boba and Agar Boba Production Line

1) PLC/SERVO process control available;

2) An Touch screen (HMI) is installed for easy operating;

3) The standard production capacity range is from 20 to 500kgs/h;

4) The main parts is made of hygienic Stainless Steel SUS304, also can be customized to SUS316.

5) Continuous working and materials recycling design to avoid wastage.

6) Individual and Entirety adjust for different size boba making.

7) Can be customized to multifunctional line for both popping boba and agar boba.

8) Boba Shell thickness is easy to be adjusted and controlled.

9) User friendly interface and automatic processing available.

Main component equipment

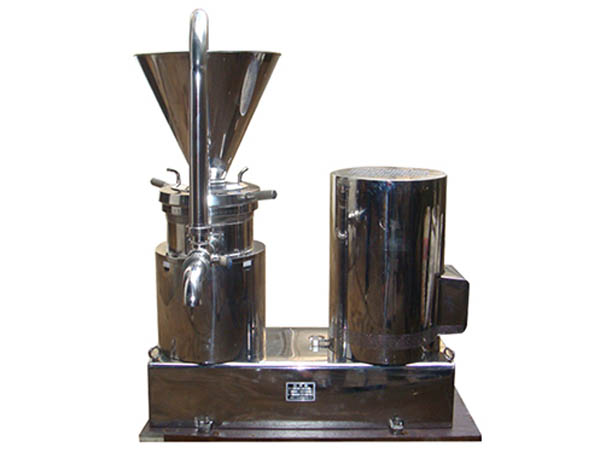

Colloid mill

Colloid mill is used to finely grind various semi-fluid materials, so that the materials can be broken and dissolved quickly and evenly. In the popping boba production line, it helps sodium alienate dissolving in water and increases its dissolution rate. Different output and fineness can be achieved by adjusting the gap between the fixed and rotating teeth of the colloid mill.

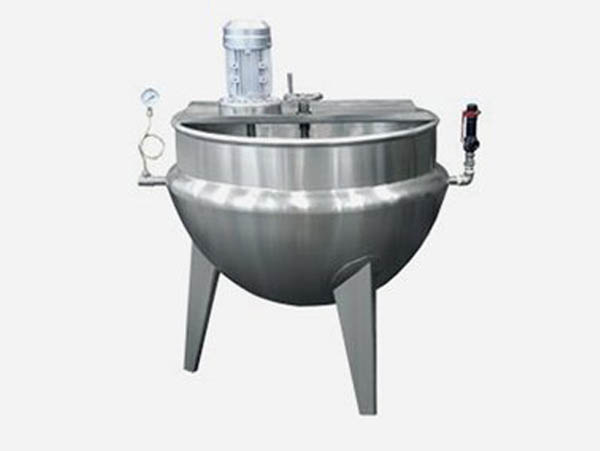

Vertical jacketed kettle (with stirring function)

The cooking system is mainly used to cook fruit juice and surface coagulation liquid. It uses scraping-edge stirrer to avoid dead ends. Both steam heating and electric heating are available.

Working temperature: 0℃~150℃

Electric heating power: 24kw

Motor power: 1.5kw

Capacity: 400L

Forming unit

The forming system is composed of depositing system, material tray conveying system, sodium alginate circulation system, popping boba filtration system and cleaning system, etc.

Technical parameters：

Total power :8kw

Capacity:200~300kg/h

Size :5400x2200x2250mm

Weight:2000kg

Working environment:>25℃

Depositing speed :15~25times/min

Popping boba size :Dia8-15mm(popping boba with a minimum diameter of 5mm and a maximum diameter of 25mm can be customized)

Equipment details:

Controller :1set

Depositor :1set

Liquid(sodium alginate liquid) cycle system :1set

Product filter system :1set

Washing system :1set

Buffer system :1set

Filtration system :1set

5.Popping Boba,agar crystal ball,Konjac Ball types (candy shapes) and applications

6.Popping Boba 、agar crystal ball、Konjac Ball making Machine Working Principle

Casting molding: conveyor belt, model plate, sugar nozzle, sugar pump, storage tank, cooling device. When the boiling material is still in the active state, the liquid material is put into cold water, and then it is cooled and shaped rapidly, and then sent to the packaging machine with the conveyor belt for packaging.

7.Installation of the Popping Boba 、agar crystal ball、Konjac Ball making machines

We will send engineers to help you install the machine

8.Popping Boba 、agar crystal ball、Konjac Ball production line for sales and price

You can leave us a message or contact us on whatsapp, and we will provide you with the most suitable scheme and quotation for your Ball production line and candy making machine according to your situation
