Top 10 types of gummy candy making machine

Top 10 types of gummy candy production line for candy making machine manufacturer

Fudge is a kind of gummy, elastic and tough candy. It is usually made of gelatin or pectin, carrageenan syrup and other raw materials. After boiling, pouring, shaping, demoulding and cooling operations, it can process different shapes and colors. fudge.

Fudge is one of the common sugars in daily life. Here are 10 production lines of gummy candy

Top 10 selling gummy production lines for candy processing machine manufacturers

1. Gummy candy production line

2. Pectin jelly candy production line

3. Fondant Depositing Machine

4. Vitamin C jelly candy pouring production line

5. Fruit cake jelly production line

6. Hantian Crystal Ball Explosive Bead Casting Machine

7. Agar soft candy pouring production line

8. Carrageenan soft candy pouring molding production line

9. Cotton candy pouring molding production line

10. Fruit jelly candy production line

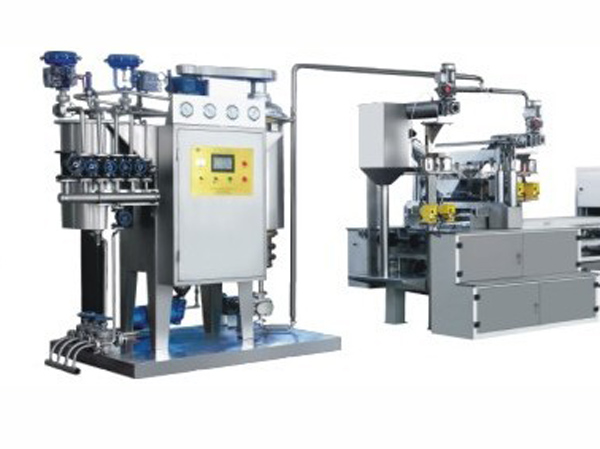

1. Gummy candy production line

1. The jelly candy production line is based on the market's requirements for the shape and color of jelly candy, and is processed by pouring production technology. Gel gum production line is a machine for continuous production of gel candy (sugar). The jelly candy production line can produce single and double-color candies; it can also change molds or pouring heads of different shapes to process jelly candies of different shapes and colors. Quantitatively set the filling and mixing of auxiliary materials; the jellybean production line machine is equipped with a PLC system.

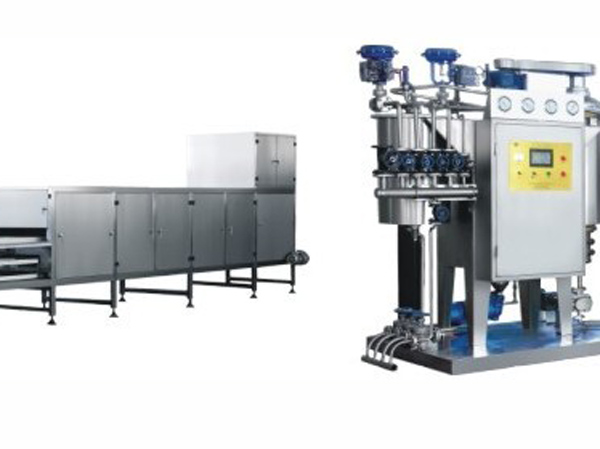

2. Pectin jelly candy making machine

The raw materials used in the pectin jelly production line are pectin and auxiliary materials, which can make pectin jelly in different shapes and colors according to different shapes of molds and pouring heads. It is a continuous production of candy (sugar) equipped with a plc system mechanical equipment.

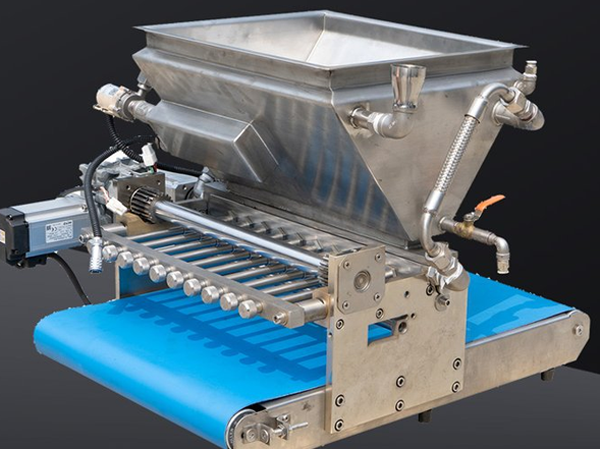

3. Fondant Depositing Machine

The gummy candy depositing machine integrates machine, electricity and air refrigeration. The adjustable range of double-head pouring distance is between 0.5m and 2m. This machine can process gelatin pectin candy, carrageenan candy, toffee, double-layer double-color candy, front and back double-color candy, sandwich candy can also produce hard candy. (can provide users with recipes and guide the process)

Main technical performance:

Production capacity: 2 tons -6 tons

Double-head complete machine power: 23kw (including double-head insulation power 10kw)

Cooling capacity: 15000-21800 kcal/hour

Mold size: 425x100x38mm (length x width x height)

Number of molds: 200-300 pieces (two types)

Machine weight: 4000 kg

Equipment shape: 12m x 1.8m x 2m

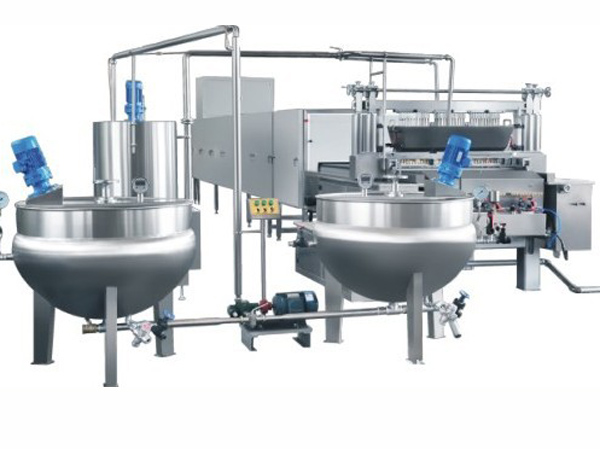

4. Vitamin C jelly candy pouring production line

Vitamin C jelly candy pouring production line

The fully automatic vitamin c jelly candy pouring production line is also a jelly candy pouring machine that is used. It integrates machine, electricity and gas. It adopts servo control and makes corresponding molds according to the shape of vitamin jelly. Add vitamins and fruits to the auxiliary materials. Gum can be processed into vitamin gummy.

Features of vitamin c soft candy pouring production line

1. Automatic PLC controls the vitamin C soft candy pouring production line (pectin, gelatin). The soft candy pouring mold adopts metal molds with compact structure. According to different selection configurations, it can produce single and double-flavored vitamin C soft candies.

2 This machine is used for continuous production of various shapes of colloidal candy (gelatin candy) production line machine

3 The entire production line is pipelined, with few human factors.

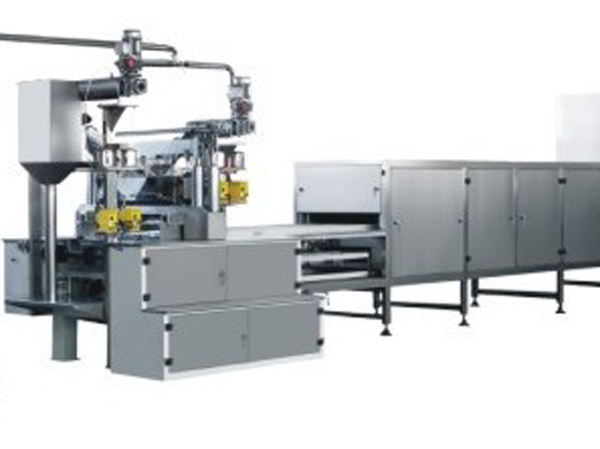

5. Fruit cake jelly production line

Fruit cake pouring production line

1 This machine can produce hawthorn fruit cake, jujube fruit cake, blueberry fruit cake, prune fruit cake, apple cake, wolfberry fruit cake, papaya fruit cake, kiwifruit fruit cake, mulberry fruit cake, grape fruit cake, tamarind fruit cake , kumquat fruit cake, sea buckthorn fruit cake and other fruit cakes.

2 Types of candies produced: hawthorn fruit cake, jujube fruit cake, blueberry fruit cake, sour plum fruit cake, apple cake, wolfberry fruit cake and other fruit cakes.

3 Power: 12kw

4 Scope of application: snack food factory equipment

5 Production speed: 350kg/h

6 Dimensions: 10000*1000*1500mm

7 Equipment types: pouring equipment

8 Power (KW) 7.5

9 machine weight 1500kg

10 Number of pours (times) 38-76

11 Compressed air consumption 0.25m3/min

12 pressure 0.4-0.6 MPa

13 cooling capacity 50000W

6. Hantian crystal ball popping beads production line

Hantian crystal ball popping boba production line adopts PLC control system, the production line is made of stainless steel, combined with the production process of popping boba, the popping boba produced by this production line has a round shape.

Main ingredients of Hantian crystal ball:

Water, white sugar, compound glue, additives, etc.

2 Features of Hantian Crystal Ball:

Contains fruit juice, caramel, etc., squeeze the popping beads with the tip of your tongue or teeth, and the juice will come out.

3 Shape of cold sky crystal ball:

spherical, ellipsoidal

4 Weight: 0.8g~1.2g/grain

5 Uses: normal temperature, low temperature, and cold drinks; can be used for milk tea, fruit drinks, milk drinks, cake decoration, egg tart sandwich, ice porridge, etc.

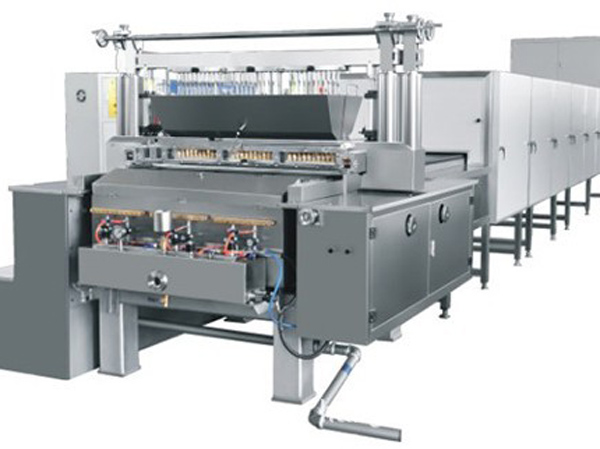

7. Agar soft candy making machine

The agar soft candy pouring production line adopts mechanical control or servo control pouring technology, is equipped with self-weighing batching system, soft candy cooking machine, formula dissolving tank and other pre-equipment, equipped with mold injection system and demoulding device, which can be used to produce three-dimensional or flat type agarose. Depending on the shape of the agar soft candy, three-dimensional or flat molds can be used.

Model: SE150Q SE300Q

Standard output 150kg/h 300kg/h

   Sugar weight: 2-8g 2-8g

Pouring speed: 20-25n/min 20-25n/min

Working environment requirements: Temperature: 20-25°C Humidity: 55%

Machine power: 18kw/380V 18kw/380V

Whole line length: 18m 20m

Machine weight: 3000kg 3500kg

8. Carrageenan soft candy production line

Carrageenan soft candy pouring molding production line: It can produce various shapes by changing the mold or pouring head. Assorted colors of carrageenan gummies

1 The auxiliary material mixing system adopts quantitative pump and dynamic mixer, and the amount of auxiliary material can be adjusted.

2. The pouring machine is pouring and quantitative, and the punch rod is easy to replace and operate. It can be adjusted individually, and the weight of the stroke of the punch rod can be adjusted.

3 Electric heating control of the heat preservation hopper, trapezoidal temperature control of the temperature controller can be set.

9. Cotton candy making machine

The marshmallow pouring molding production line adopts technological formula, which can produce marshmallows in various shapes such as four-color strips, squares, watermelons, and four-striped twists.

 The main components of the marshmallow pouring and molding production line are: electrical control box, powder conveyor, extrusion molding machine, shaping, drying conveying system, sugar cutting, sugar discharging device, etc. Output 100-150KG/hour

The main technical parameters:

Production capacity: 1000kg/shift

Transmission power: 7.5kw

Drying power: 6kw

Weight: 3000kg

Dimensions: 20000mm (length) x 1500mm (width) x 1550mm (height)

10. Fruit jelly candy production line

The fruit jelly production line integrates machine, electricity and gas control, and can produce single-color fruit jelly, double-flavor and double-layer fruit jelly, three-flavor and three-color spray, crystal candy, sandwich candy, etc.

1 PLC is used to program the temperature, time, heat preservation temperature and pouring speed of vacuum boiling sugar;

2 10.7-inch large LED touch screen display operation;

The production capacity of 3 series products can range from 150 kg to 600 kg per hour;

4 Frequency conversion speed regulation to control the flow of sugar liquid;

5 Conveyor chain belt, cooling system, double demoulding mechanism demoulding;

6 Candies of various shapes can be produced according to different molds;

7 Replace some devices and molds, the production line can produce spherical and flat three-dimensional fruit jelly candies.
